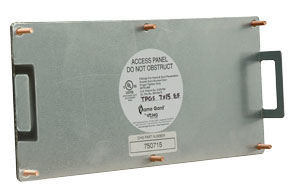

15" X 23" Flame Gard Grease Duct Access Panel(751220)

Flame Gard UL fire rated flat access doors. Heavy-duty 16 gauge steel construction. Back frame reinforces duct cut-out. Gasket rated to 2300F (1260C) for fire tight seal. Easy to install and easy to clean.

Back Frame Outside Dim: 15" x 23" (381mm x 584mm)
Front Panel Outside Dim: 15" x 23" (381mm x 584mm)
Panel Width: 1/2" (13mm)
Stud Height: 1" (25mm)
Hole Size: 12" x 20" (305mm x 508mm)
Mounting Studs: 14
Flame Gard Model Number: 751220

Click here to download the data sheet for this product.
